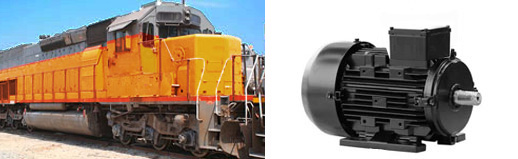

EMD Locomotive Auxiliary Motor Generator Coils

Stimple & Ward has been manufacturing direct OEM replacement armature & field coils for Locomotive Auxiliary Grid Fan Motors and DC generators for over 50 years. We carry most coils in stock for same day shipment.

Direct replacement EMD part numbers available include: 5532616, 5327728, 5385654, 1073428, 5512866, 0047389, 4996691, 5535462, 5331025, 3175391, 3175378, 3175380

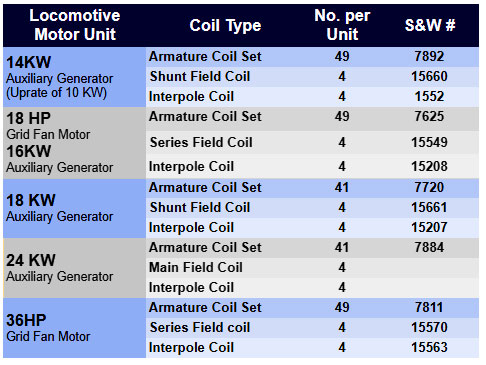

Locomotive Motor Unit
Coil Type
No. per Unit
S&W #
EMD Locomotive Generator Coilslocomotive generator coils

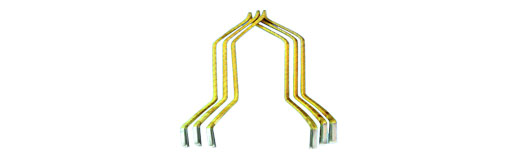

Armature Coil Sets

EMD Coils\

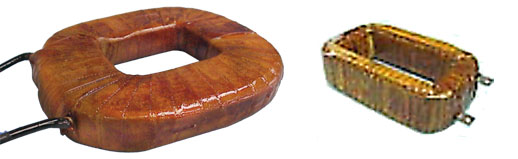

EMD Shunt Coils

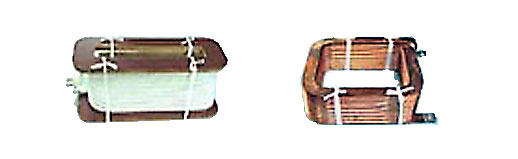

auxillary motor generator coilsinterpole coils
Interpole Coils

14KW
Auxiliary Generator
(Uprate of 10 KW)
Armature Coil Set
49
7892
Shunt Field Coil
4
15660
Interpole Coil
4
1552
18 HP
Grid Fan Motor
16KW
Auxiliary Generator
Armature Coil Set
49
7625
Series Field Coil
4
15549
Interpole Coil
4
15208

18 KW
Auxiliary Generator

Armature Coil Set
41
7720
Shunt Field Coil
4
15661
Interpole Coil
4
15207
24 KW
Auxiliary Generator
Armature Coil Set
41
7884
Main Field Coil
4
Interpole Coil
4
36HP
Grid Fan Motor
Armature Coil Set
49
7811
Series Field coil
4
15570
Interpole Coil
4
15563


If you would like more information about EMD Locomotive auxiliary motor and generator coils
please call 1-800-792-6457 or click here to contact us.
